    11 Network Time Protocol (Ntp)

    NTP achieves accuracy in the range of 1-50ms

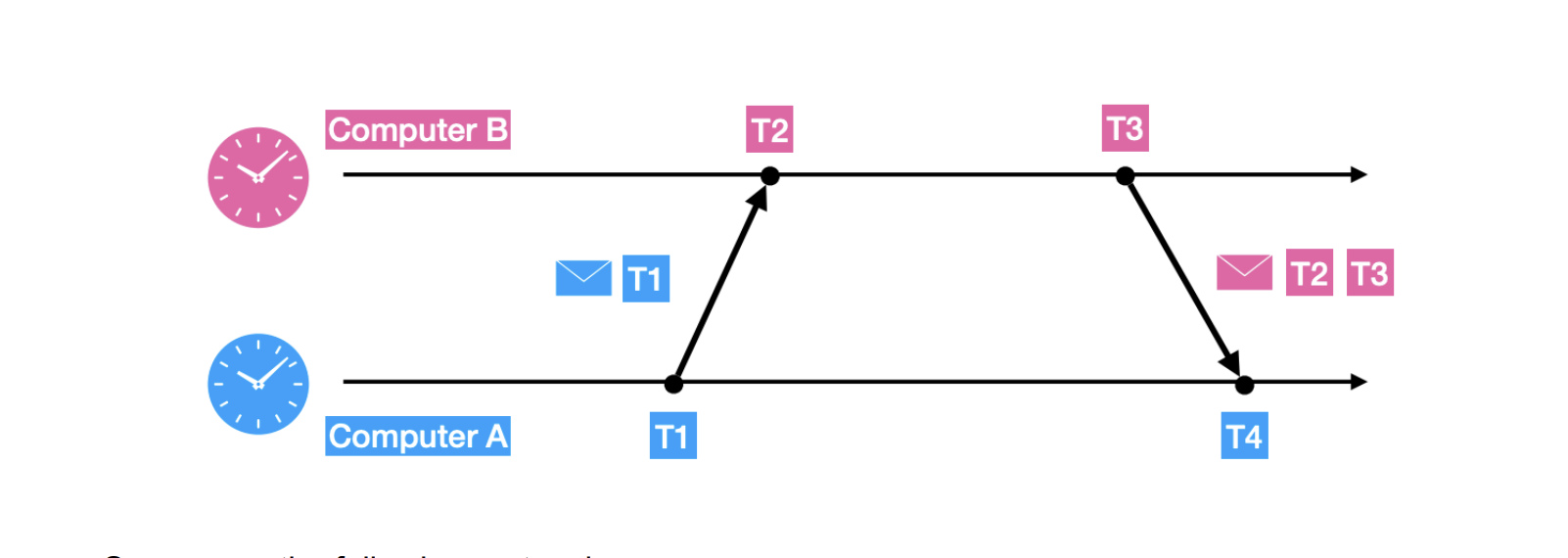

    How do we measure by how much 2 clocks differ?
    Pasted image 20251012212548.png

    Round Trip Delay

    Round Trip Delay = (T4 - T1) - (T3 - T2)

    Cannot do (T2 - T1) + (T4 - T3) because times are different on different machines

    Clock Difference

    θ = [(T2 - T1) + (T3 - T4)] / 2
    Do several rounds to average out noise

    Stratum

    a stratum tells you how close a time source is to the original

    • Stratum 0: The “real” clocks — atomic clocks, GPS receivers, or radio clocks that keep true UTC time. They’re not networked but act as the ultimate source.

    • Stratum 1: Servers directly connected to a Stratum 0 clock. They distribute that time over the network.

    • Stratum 2: Servers that get their time from Stratum 1 servers.

    • Stratum 3: Servers that sync to Stratum 2, and so on.

    When A contacts B, it will adjust its time only if its own stratum level is higher than that of B. After synchronization A’s stratum level will be one higher than that of B.
